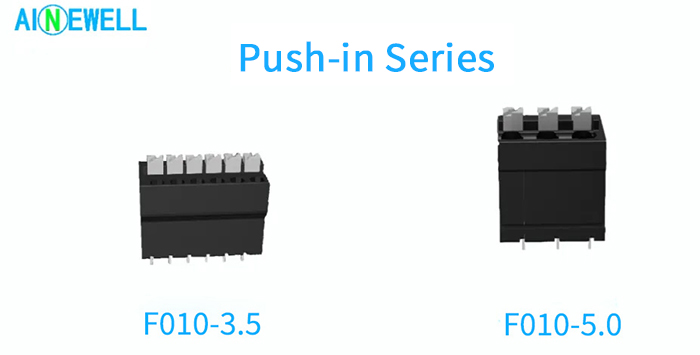

AINEWELL F010-3.5/5.0 series push-in PCB terminal
2021-05-29

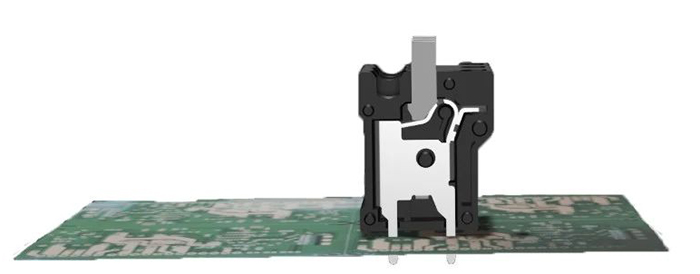

Dual-row solder pins securely connect to the PCB board, providing excellent anti-vibration performance.

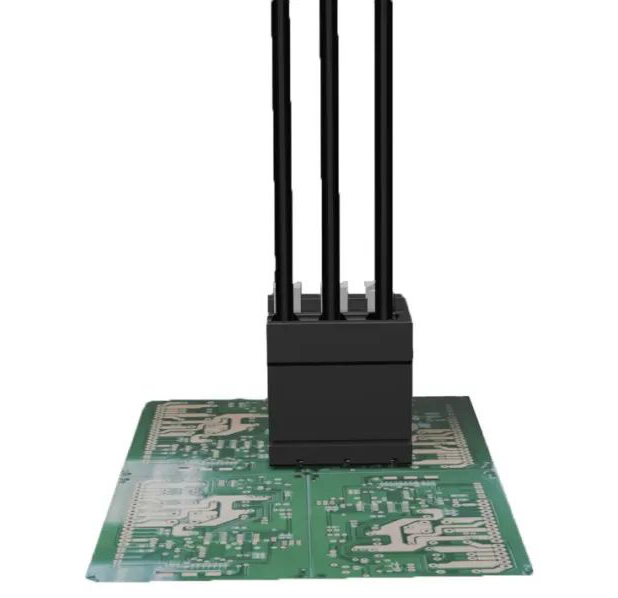

Push-in wiring helps customers save labor costs.

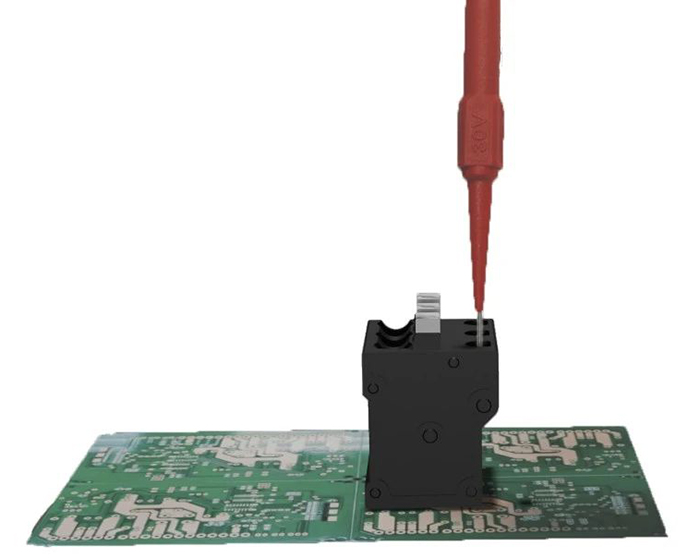

The product enables fully automated testing.



The product has passed the UL and TUV safety certifications.


Product Parameters
ModelF010-3.5F010-5.0
Pitch3.5mm5.0mm
IEC Voltage160V320V
IEC Current17.5A17.5A
IEC Wire diameter0.2-1.5m㎡0.2-1.5m㎡
UL Voltage300V300V
UL Current10A10A
UL Wire diameter28-16AWG28-16AWG



  Application Industry

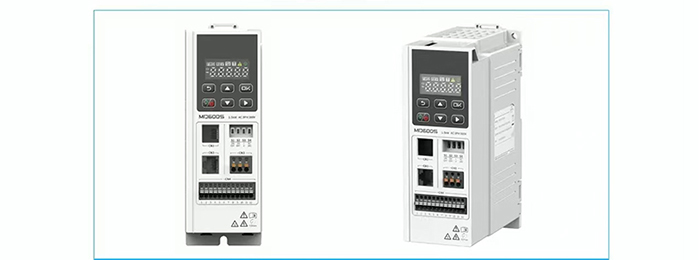

  Mainly used in industries such as inverters and EV charging station,etc..
