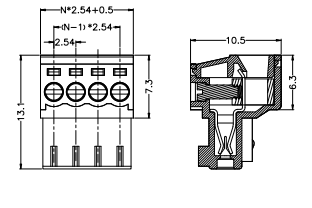

Pluggable terminal blocks F2A-2.54
Pluggable terminal blocks F2A-2.54

 Pitch:2.54mm,Electrical:UL,Rated Voltage:150V,Rated Current:5A,colour:green ;

 In order to meet the requirements of different application, we can offer the choices of horizontal, vertical , same direction wiring connection and etc ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:2.54mm

 Electrical:UL

 Rated Voltage:150V

 Rated Current:5A

 Wire Diameter Range(AWG/mm²):24-20/0.2-2.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1300V/1min

 Strip Length:8mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductor-
Fastening piece Screw/SpringPhosphor Bronze
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage150V130V
Rated Current5A10A
Withstand VoltageAC1300V/1min
Impulse Withstand Voltage2.5KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)24~20/0.2~0.5
Strip Length8mm
TorqueM1.6,0.1N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
