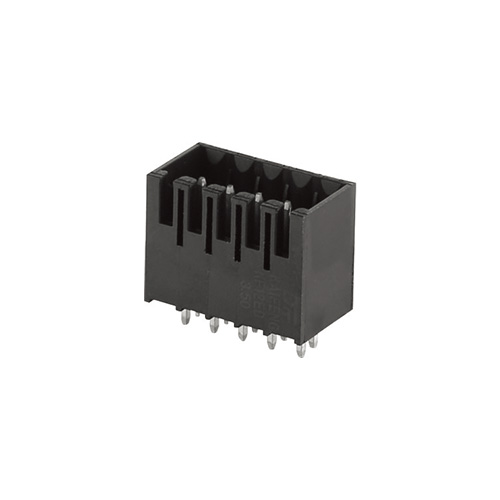

Pluggable terminal blocks F8NVC-3.5
Pluggable terminal blocks F8NVC-3.5

 Pitch:3.5mm,Electrical:UL,Rated Voltage:150V,Rated Current:8A,colour:black ;

 In order to meet the requirements of different application, we can offer the choices of horizontal, vertical , same direction wiring connection and etc ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:3.5mm

 Electrical:UL

 Rated Voltage:150V

 Rated Current:8A

 Wire Diameter Range(AWG/mm²):-

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1300V/1min

 Strip Length:-


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorRed Copper, Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/Nut-
Electric Characteristics                ULIEC
Rated Voltage150V320V
Rated Current8A10A
Withstand VoltageAC1300V/1min
Impulse Withstand Voltage2.5KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)-
Strip Length-
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
