Screw terminal blocks F332N-5.0
Screw terminal blocks F332N-5.0

 Pitch:5.0mm,Electrical:UL,Rated Voltage:300V,Rated Current:10A,colour:black ;

 combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

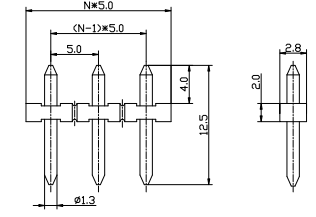

 Pitch:5.0mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:10A

 Wire Diameter Range(AWG/mm²):-

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2000V/1min

 Strip Length:-


Datasheet
Material and Finish
HosuingPA66 ,UL94V-0
Electric conductorBrass, Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/Nut-
Electric Characteristics                ULIEC
Rated Voltage300V250V
Rated Current10A12A
Withstand VoltageAC2000V/1min
Impulse Withstand Voltage4KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)-
Strip Length-
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)


Matching products
