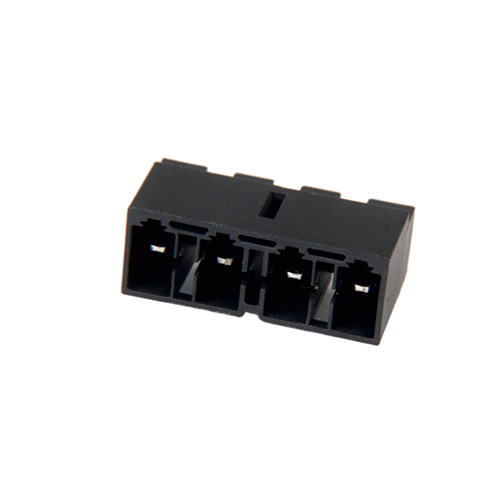

Pluggable terminal blocks F9CP-7-7.5
Pluggable terminal blocks F9CP-7-7.5

 Pitch:7.5mm,Electrical:UL,Rated Voltage:300V,Rated Current:25A,colour:black ;

 In order to meet the requirements of different application, we can offer the choices of horizontal, vertical , same direction wiring connection and etc ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

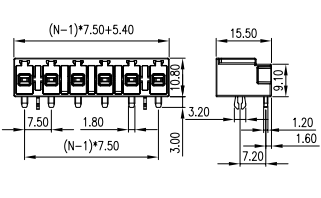

 Pitch:7.5mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:25A

 Wire Diameter Range(AWG/mm²)-

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2200V/1min

 Strip Length:-


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/NutBrass
Electric Characteristics                ULIEC
Rated Voltage300V630V
Rated Current25A25A
Withstand VoltageAC2200V/1min
Impulse Withstand Voltage6KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)-
Strip Length-
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
