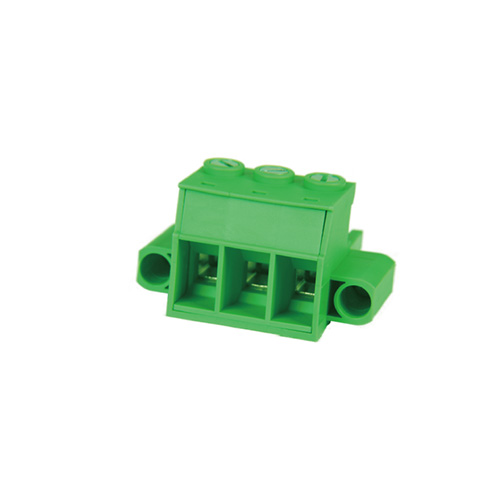

Pluggable terminal blocks F8HERM-10.16
Pluggable terminal blocks F8HERM-10.16

 Pitch:10.16mm,Electrical:UL,Rated Voltage:300V,Rated Current:52A,colour:green ;

 In order to meet the requirements of different application, we can offer the choices of horizontal, vertical , same direction wiring connection and etc ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

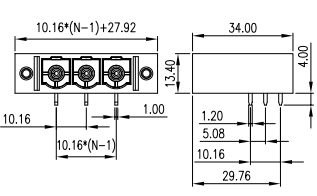

 Pitch:10.16mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:52A

 Wire Diameter Range(AWG/mm²)-

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2200V/1min

 Strip Length:-


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/Nut-
Electric Characteristics                ULIEC
Rated Voltage300V1000V
Rated Current52A76A
Withstand VoltageAC2200V/1min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)-
Strip Length-
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
