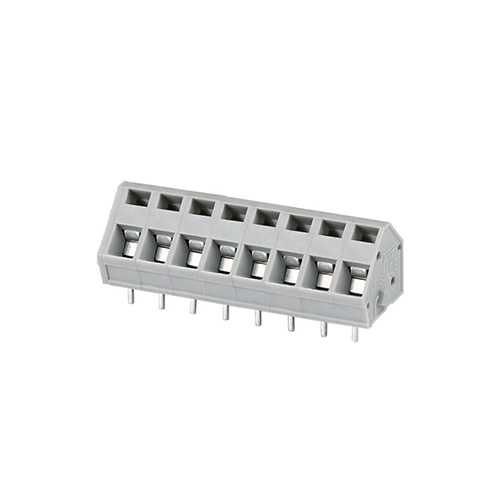

Spring terminal blocks F188A-10.16
Spring terminal blocks F188A-10.16

 Pitch:10.16mm,Electrical:UL,Rated Voltage:300V,Rated Current:15A,colour:grey ;

 Most spring PCB terminal blocks are assembled piece by piece ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:10.16mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:15A

 Wire Diameter Range(AWG/mm²):24-14/2.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2000V/1min

 Strip Length:5-6mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/NutStainless Steel
Electric Characteristics                ULIEC
Rated Voltage300V450V/750V/1000V
Rated Current15A17A
Withstand VoltageAC2000V/1min
Impulse Withstand Voltage
Connection Characteristics
Wire Diameter Range(AWG/mm²)24~14/2.5
Strip Length5-6mm
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)


Matching products
