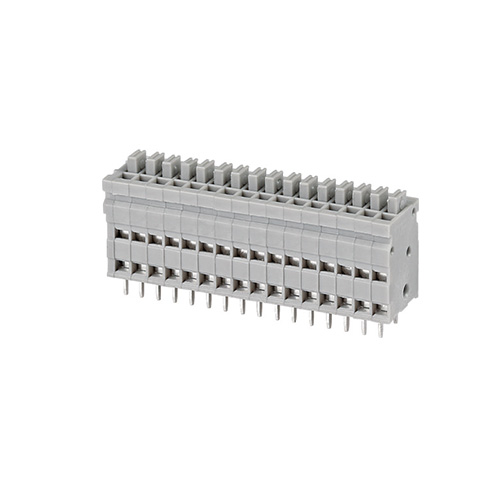

Spring terminal blocks F143V-2.54
Spring terminal blocks F143V-2.54

 Pitch:2.54mm,Electrical:UL,Rated Voltage:150V,Rated Current:5A,colour:grey ;

 Most spring PCB terminal blocks are assembled piece by piece ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:2.54mm

 Electrical:UL

 Rated Voltage:150V

 Rated Current:5A

 Wire Diameter Range(AWG/mm²):24-20/0.2-1.0

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1250V/1min

 Strip Length:11mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/NutStainless Steel
Electric Characteristics                ULIEC
Rated Voltage150V130V
Rated Current5A6A
Withstand VoltageAC1250V/1min
Impulse Withstand Voltage2.5KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)24~20/0.2~1.0
Strip Length11mm
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
