American & Japanese terminal blocks F-65C...-C-11.0
American & Japanese terminal blocks F-65C...-C-11.0

 Pitch:11.0mm,Electrical:UL,Rated Voltage:300V,Rated Current:25A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

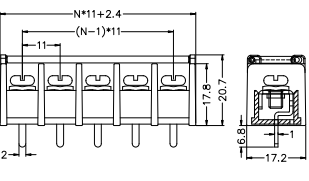

 Pitch:11.0mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:25A

 Wire Diameter Range(AWG/mm²)22~12/0.2~4

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2000V/1min

 Strip Length:9-10mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/SpringSteel,Nickel-plated
Fastening piece Cage/Nut-
Electric Characteristics                ULIEC
Rated Voltage300V750V
Rated Current25A32A
Withstand VoltageAC2000V/1min
Impulse Withstand Voltage6KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)22~12/0.2~4
Strip Length9-10mm
TorqueM4,1.2N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)


Matching products
