American & Japanese terminal blocks F-50C...-C-13.0
American & Japanese terminal blocks F-50C...-C-13.0

 Pitch:13.0mm,Electrical:UL,Rated Voltage:600V,Rated Current:40A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

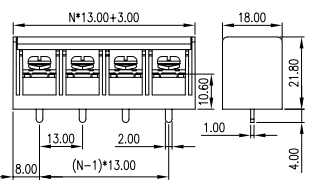

 Pitch:13.0mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:40A

 Wire Diameter Range(AWG/mm²)20-9/0.5-6

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2500V/1min

 Strip Length:10-11mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Tin-plated
Fastening piece Screw/SpringSteel,Nickel-plated
Fastening piece Cage/Nut-
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current40A40A
Withstand VoltageAC2500V/1min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~9/0.5~6
Strip Length10-11mm
TorqueM4,1.2N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
