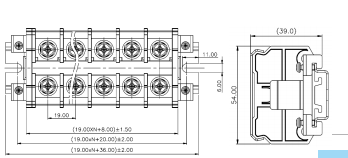

American & Japanese terminal blocks FD60-A-19.0
American & Japanese terminal blocks FD60-A-19.0

 Pitch:19.0mm,Electrical:UL,Rated Voltage:600V,Rated Current:80A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。


 Pitch:19.0mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:80A

 Wire Diameter Range(AWG/mm²)20-4/0.5-25

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2000V/1min

 Strip Length:-


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/SpringSteel,Nickel-plated
Fastening piece Cage/Nut-
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current80A101A
Withstand VoltageAC2000V/1min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~4/0.5~25
Strip Length-
Torque4.4N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
