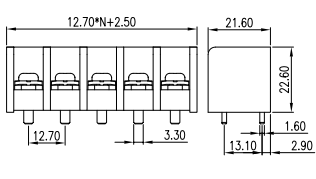

American & Japanese terminal blocks FB606-11B-12.7
American & Japanese terminal blocks FB606-11B-12.7

 Pitch:12.7mm,Electrical:UL,Rated Voltage:600V,Rated Current:57A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。


 Pitch:12.7mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:57A

 Wire Diameter Range(AWG/mm²)18-8/1.0-10

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2200V/1min

 Strip Length:12-14mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Tin-plated
Fastening piece Screw/SpringCopper Alloy,Nickel-plated
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current57A57A
Withstand VoltageAC2200V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)18~8/1.0~10
Strip Length12-14mm
Torque1.2-1.5N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
