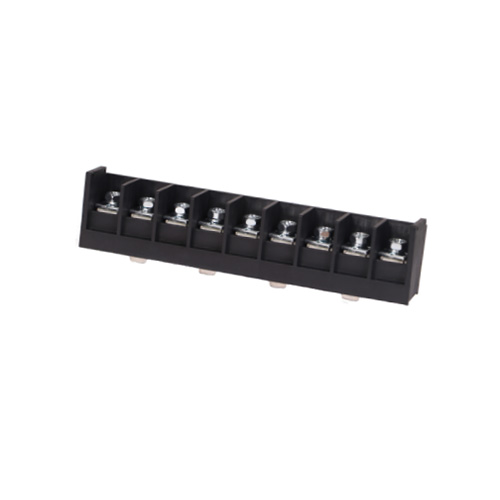

American & Japanese terminal blocks FB607-01-20.20
American & Japanese terminal blocks FB607-01-20.20

 Pitch:20.20mm,Electrical:UL,Rated Voltage:600V,Rated Current:100A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

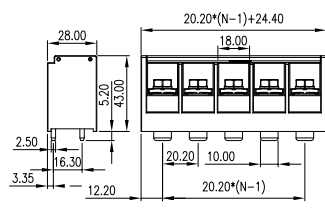

 Pitch:20.20mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:100A

 Wire Diameter Range(AWG/mm²)12-2/4-35

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2500V/1min

 Strip Length:18-20mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Tin-plated
Fastening piece Screw/SpringSteel,Zinc-plated
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current100A101A
Withstand VoltageAC2500V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)12~2/4~35
Strip Length18-20mm
TorqueM6,3.5N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
