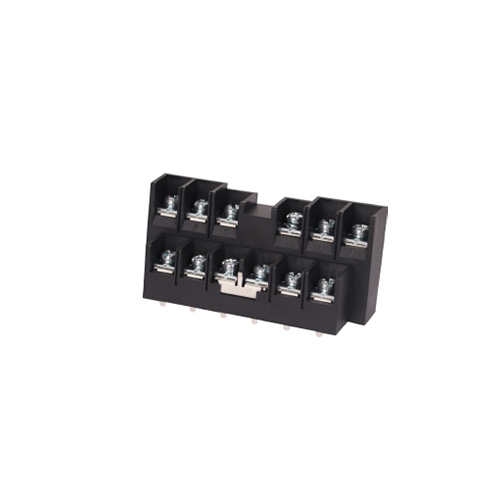

American & Japanese terminal blocks CF106-04-12P-15.0
American & Japanese terminal blocks CF106-04-12P-15.0

 Pitch:15.0mm,Electrical:UL,Rated Voltage:600V,Rated Current:45A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。


 Pitch:15.0mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:45A

 Wire Diameter Range(AWG/mm²)20-8/0.5-10

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2200V/1min

 Strip Length:13-14mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Tin-plated
Fastening piece Screw/SpringSteel,Zinc-plated
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current45A45A
Withstand VoltageAC2200V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~8/0.5~10
Strip Length13-14mm
TorqueM5,2.0N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
