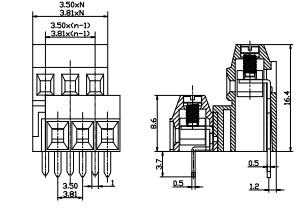

Screw terminal blocks F124A-3.81
Screw terminal blocks F124A-3.81

 Pitch:3.81mm,Electrical:UL,Rated Voltage:150V,Rated Current:10A,colour:green ;

 combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:3.81mm

 Electrical:UL

 Rated Voltage:150V

 Rated Current:10A

 Wire Diameter Range(AWG/mm²)24~16/0.2~1.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1500V/1min

 Strip Length:5~6mm


Datasheet
Material and Finish
HosuingPA66 ,UL94V-0
Electric conductorBrass, Tin-plated
Fastening piece Screw/SpringBrass,Nickel-plated
Fastening piece Cage/NutM2.0,Steel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage150V130V
Rated Current10A10A
Withstand VoltageAC1500V/1min
Impulse Withstand Voltage2.5KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)24~16/0.2~1.5
Strip Length5~6mm
Torque0.2N.m1.7Lbin
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
