Screw terminal blocks F635-7.62
Screw terminal blocks F635-7.62

 Pitch:7.62mm,Electrical:UL,Rated Voltage:500V,Rated Current:30A,colour:green ;

 combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:7.62mm

 Electrical:UL

 Rated Voltage:500V

 Rated Current:30A

 Wire Diameter Range(AWG/mm²)26~10/0.2~4

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1600V/1min

 Strip Length:8-9mm

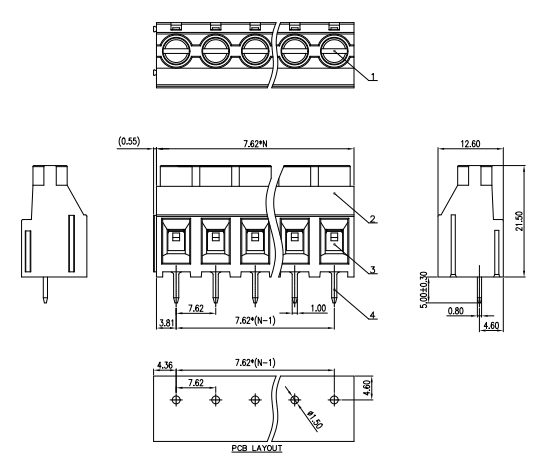

Datasheet
Material and Finish
HosuingPA66 ,UL94V-0
Electric conductorBrass, Tin-plated
Fastening piece Screw/SpringSteel,Zinc-plated
Fastening piece Cage/NutBrass,Nickel-plated
Electric Characteristics                ULIEC
Rated Voltage500V630V
Rated Current30A32A
Withstand VoltageAC1600V/1min
Impulse Withstand Voltage6KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)26~10/0.2~4
Strip Length8~9mm
TorqueM3,0.5N.m
Operating Temperature Range-40℃~+105℃



Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
