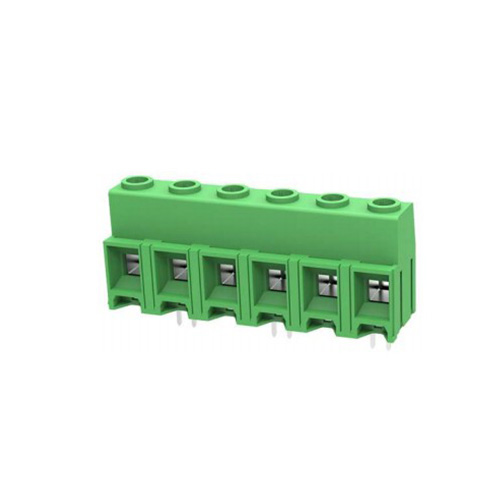

Screw terminal blocks F138T-12.7
Screw terminal blocks F138T-12.7

 Pitch:12.7mm,Electrical:UL,Rated Voltage:600V,Rated Current:60A,colour:green ;

 combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

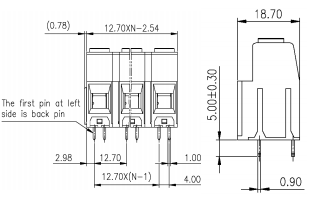

 Pitch:12.7mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:60A

 Wire Diameter Range(AWG/mm²)20~6/0.5~16

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC3500V/1min

 Strip Length:13-14mm


Datasheet
Material and Finish
HosuingPA66 ,UL94V-0
Electric conductorBrass, Tin-plated
Fastening piece Screw/SpringPhosphor Bronze Nickel- platedor Stainless Steel
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current60A76A
Withstand VoltageAC3500V/1min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~6/0.5~16
Strip Length13~14mm
TorqueM4,1.2N.m
Operating Temperature Range-40℃~+105℃



Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)


Matching products
