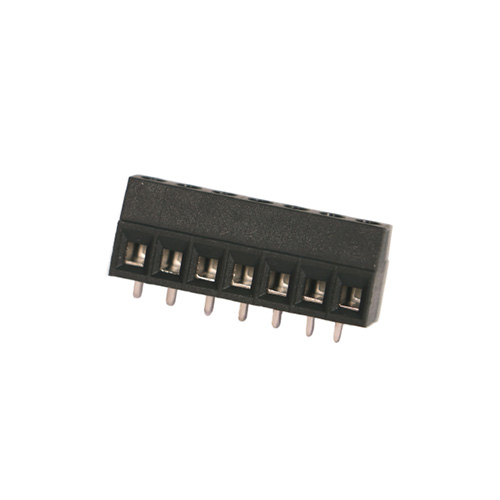

Screw terminal blocks F124H-3.81
Screw terminal blocks F124H-3.81

 Pitch:3.81mm,Electrical:UL,Rated Voltage:300V,Rated Current:12A,colour:black ;

 combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:3.81mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:12A

 Wire Diameter Range(AWG/mm²)30-14/0.2-1.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1600V/1min

 Strip Length:5~6mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy, Tin-plated
Fastening piece Screw/SpringSteel,Zinc-plated
Fastening piece Cage/NutCopper Alloy,Nickel-plated
Electric Characteristics                ULIEC
Rated Voltage300V200V
Rated Current12A16A
Withstand VoltageAC1600V/1min
Impulse Withstand Voltage2.5KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)30~14/0.2~1.5
Strip Length5-6mm
TorqueM2,0.2N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
