Screw terminal blocks F128V-7.62
Screw terminal blocks F128V-7.62

 Pitch:7.62mm,Electrical:UL,Rated Voltage:300V,Rated Current:20A,colour:green ;

 combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:7.62mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:20A

 Wire Diameter Range(AWG/mm²)28~12/0.2~2.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1600V/1min

 Strip Length:6-7mm

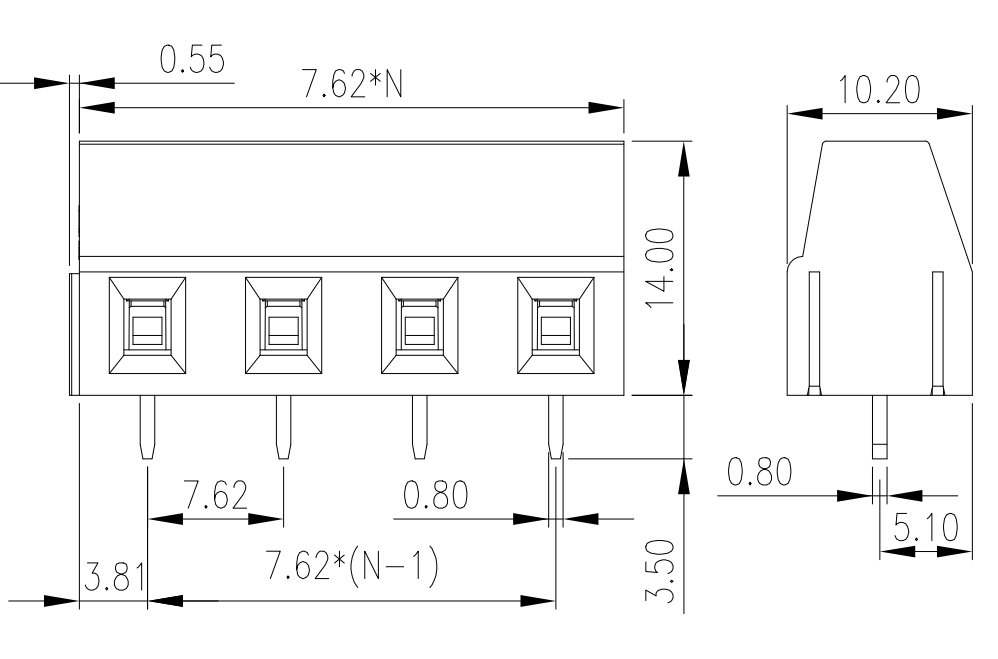

Datasheet
Material and Finish
HosuingPA66 ,UL94V-0
Electric conductorCopper Alloy, Tin-plated
Fastening piece Screw/SpringSteel,Zinc-plated
Fastening piece Cage/NutCopper Alloy,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage300V320V
Rated Current20A24A
Withstand VoltageAC1600V/1min
Impulse Withstand Voltage4KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)28~12/0.5~2.5
Strip Length6~7mm
Torque
M3,0.5N.m
Operating Temperature Range-40℃~+105℃



Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)


Matching products
