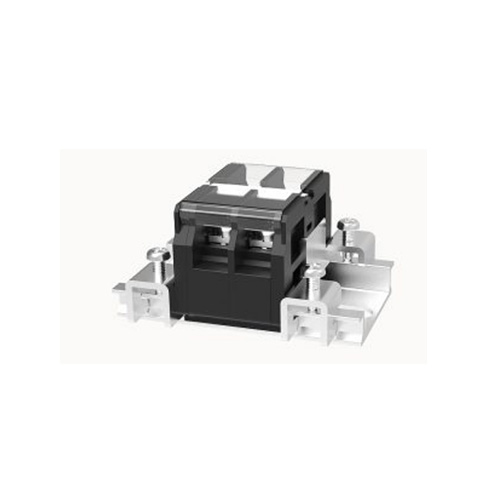

American & Japanese terminal blocks FD20-XXP-BK-A0-8.0
American & Japanese terminal blocks FD20-XXP-BK-A0-8.0

 Pitch:8.0mm,Electrical:UL,Rated Voltage:600V,Rated Current:20A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

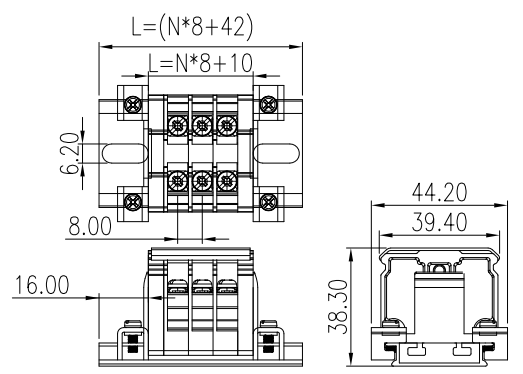

 Pitch:8.0mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:20A

 Wire Diameter Range(AWG/mm²)24-12/0.2-2.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC3000V/1min

 Strip Length:7-8mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Nickel-plated
Fastening piece Screw/SpringSteel
Fastening piece Cage/NutSteel
Electric Characteristics                ULIEC
Rated Voltage600V800V
Rated Current20A20A
Withstand VoltageAC3000V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)24~12/0.2~2.5
Strip Length7-8mm
TorqueM3,0.5N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)


Matching products
