American & Japanese terminal blocks FB603-17.0
American & Japanese terminal blocks FB603-17.0

• Pitch:17.0mm,Electrical:UL,Rated Voltage:600V,Rated Current:75A,colour:black ;

• In order to meet the requirements of different application,With and without plastic cover are optional ;

• The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

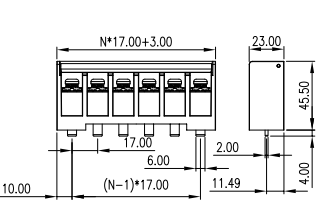

→ Pitch:17.0mm

→ Electrical:UL

→ Rated Voltage:600V

→ Rated Current:75A

→ Wire Diameter Range(AWG/mm²):20-4/0.5-16

→ Operating Temperature Range:-40℃~+105℃

→ Withstand Voltage:  AC2000V/1min

→ Strip Length:14-16mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Tin-plated
Fastening piece Screw/SpringSteel,Nickel-plated
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current75A76A
Withstand VoltageAC2000V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~4/0.5~16
Strip Length14-16mm
TorqueM5,2.0N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
