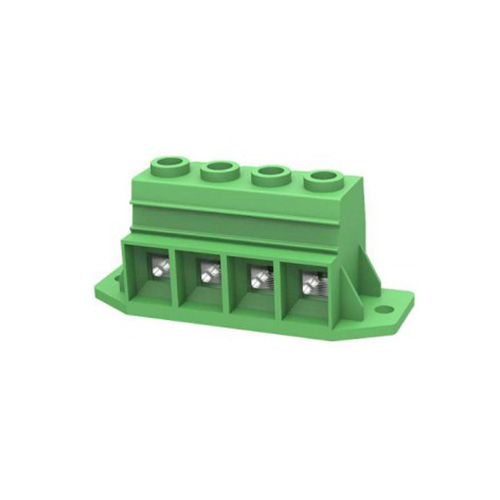

Screw terminal blocks F139TM-15.0
Screw terminal blocks F139TM-15.0

• Pitch:15.0mm,Electrical:UL,Rated Voltage:600V,Rated Current:115A,colour:green ;

• combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

• The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


→ Pitch:15.0mm

→ Electrical:UL

→ Rated Voltage:600V

→ Rated Current:115A

→ Wire Diameter Range(AWG/mm²):20~2/0.5~35

→ Operating Temperature Range:-40℃~+105℃

→ Withstand Voltage:  AC3500V/1min

→ Strip Length:18mm


Datasheet
Material and Finish
HosuingPA66 ,UL94V-0
Electric conductorCopper Alloy, Tin-plated
Fastening piece Screw/SpringSteel,Zinc-plated
Fastening piece Cage/NutCopper Alloy,,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V1000V
Rated Current115A125A
Withstand VoltageAC3500V/1min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~2/0.5~35
Strip Length18mm
TorqueM5,2.5N.m
Operating Temperature Range-40℃~+105℃



Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
