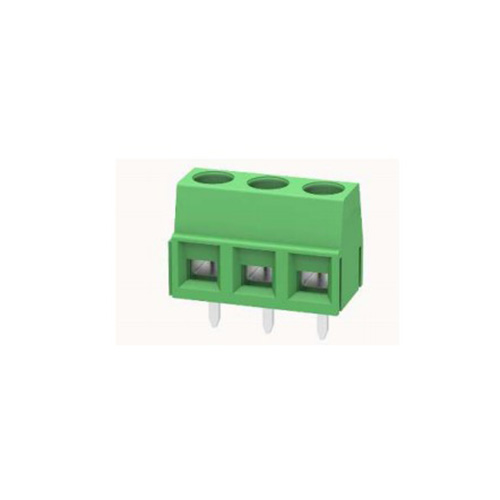

Screw terminal blocks F127-4.5
Screw terminal blocks F127-4.5

• Pitch:4.5mm,Electrical:UL,Rated Voltage:300V,Rated Current:10A,colour:green ;

• combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;

• The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


→ Pitch:4.5mm

→ Electrical:UL

→ Rated Voltage:300V

→ Rated Current:10A

→ Wire Diameter Range(AWG/mm²):30~16/0.14~1.5

→ Operating Temperature Range:-40℃~+105℃

→ Withstand Voltage:  AC1600V/1min

→ Strip Length:5-6mm


Datasheet
Material and Finish
HosuingPA66 ,UL94V-0
Electric conductorCopper Alloy, Tin-plated
Fastening piece Screw/SpringSteel,Zinc-plated
Fastening piece Cage/NutCopper Alloy,Nickel-plated
Electric Characteristics                ULIEC
Rated Voltage300V320V
Rated Current10A15A
Withstand VoltageAC1600V/1min
Impulse Withstand Voltage4KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)30~16/0.14~1.5
Strip Length5~6mm
TorqueM3.0,0.5N.m
Operating Temperature Range-40℃~+105℃


Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
