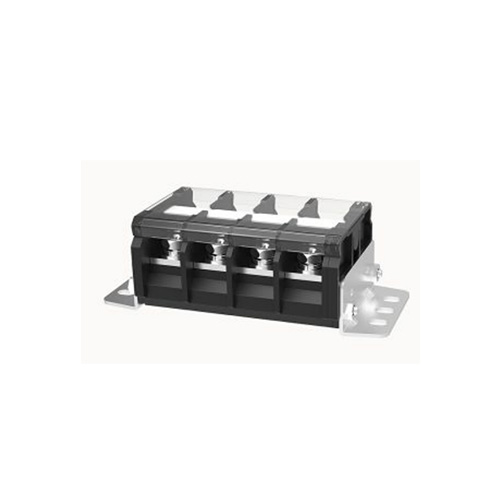

American & Japanese terminal blocks FD30-XXP-BK-B0-12.0
American & Japanese terminal blocks FD30-XXP-BK-B0-12.0

• Pitch:12.0mm,Electrical:UL,Rated Voltage:600V,Rated Current:30A,colour:black ;

• In order to meet the requirements of different application,With and without plastic cover are optional ;

• The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

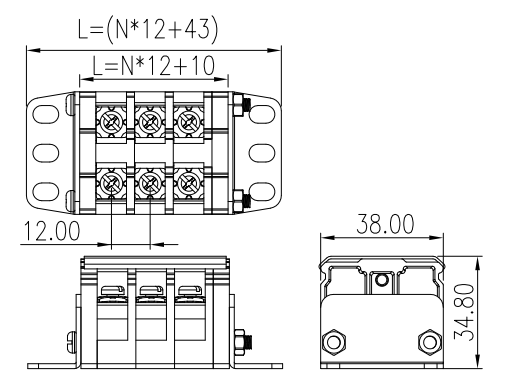

→ Pitch:12.0mm

→ Electrical:UL

→ Rated Voltage:600V

→ Rated Current:30A

→ Wire Diameter Range(AWG/mm²):20-10/0.2-4

→ Operating Temperature Range:-40℃~+105℃

→ Withstand Voltage:  AC3000V/1min

→ Strip Length:10-12mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorCopper Alloy,Nickel-plated
Fastening piece Screw/SpringSteel
Fastening piece Cage/NutSteel
Electric Characteristics                ULIEC
Rated Voltage600V800V
Rated Current30A30A
Withstand VoltageAC3000V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~10/0.2~4
Strip Length10-12mm
TorqueM4,1.2N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
