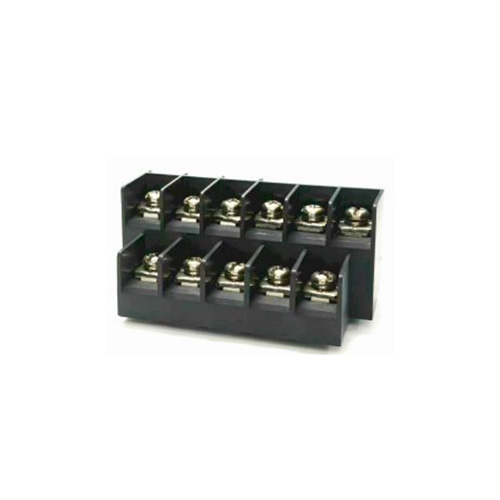

American & Japanese terminal blocks AF103-03-15.7
American & Japanese terminal blocks AF103-03-15.7

• Pitch:15.7mm,Electrical:UL,Rated Voltage:600V,Rated Current:65A,colour:black ;

• In order to meet the requirements of different application,With and without plastic cover are optional ;

• The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

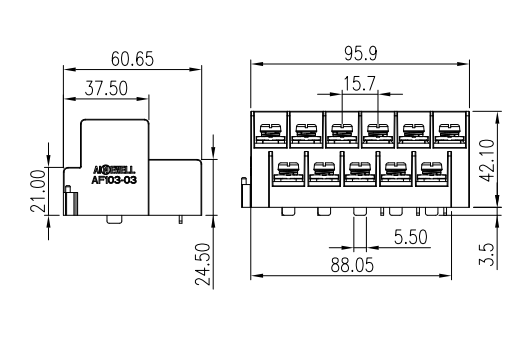

→ Pitch:15.7mm

→ Electrical:UL

→ Rated Voltage:600V

→ Rated Current:65A

→ Wire Diameter Range(AWG/mm²):20-6/0.34-16

→ Operating Temperature Range:-40℃~+105℃

→ Withstand Voltage:  AC2200V/1min

→ Strip Length:14-15mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/SpringSteel,Nickel-plated
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V800V
Rated Current65A76A
Withstand VoltageAC2200V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)20~6/0.34~16
Strip Length14-15mm
TorqueM5,2N.m/M3,0.6N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
