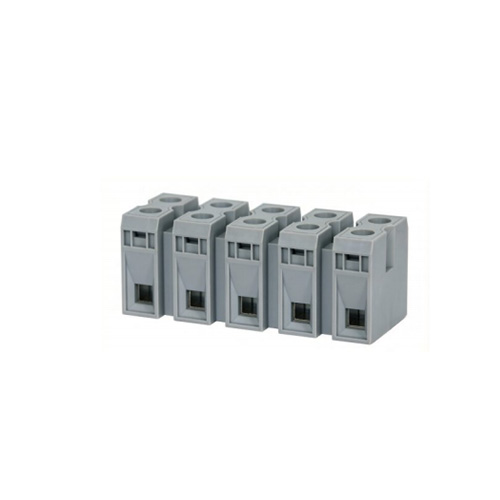

• Pitch：13.5mm，Electrical：UL，Rated Voltage：300V，Rated Current：50A，colour：grey ;
• The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

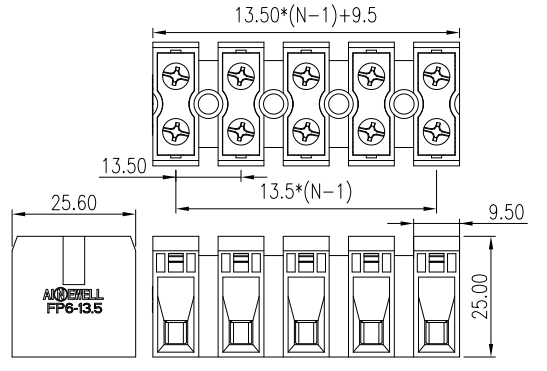

→ Pitch：13.5mm
→ Electrical：UL
→ Rated Voltage：300V
→ Rated Current：50A
→ Wire Diameter Range（AWG/mm²）：24~8/0.5~10
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC2500V/1min
→ Strip Length：-
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 ，UL94V-0 |
| Electric conductor | Brass, Tin-plated |
| Fastening piece Screw/Spring | Steel,Nickel-plated |
| Fastening piece Cage/Nut | Copper Alloy,Nickel-plated |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 300V | 630V |
| Rated Current | 50A | 57A |
| Withstand Voltage | AC2500V/1min | |
| Impulse Withstand Voltage | 6KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm²) | 24~8/0.5~10 |
| Strip Length | - |
| Torque | M4,1.2N.m |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
