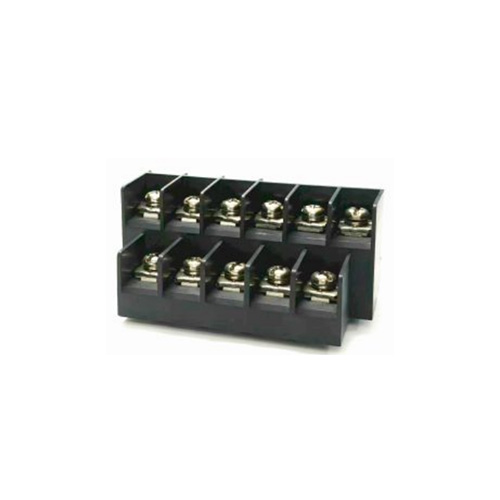

American & Japanese terminal blocks AF103-04-20.20
American & Japanese terminal blocks AF103-04-20.20

 Pitch:20.20mm,Electrical:UL,Rated Voltage:600V,Rated Current:91A,colour:black ;

 In order to meet the requirements of different application,With and without plastic cover are optional ;

 The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

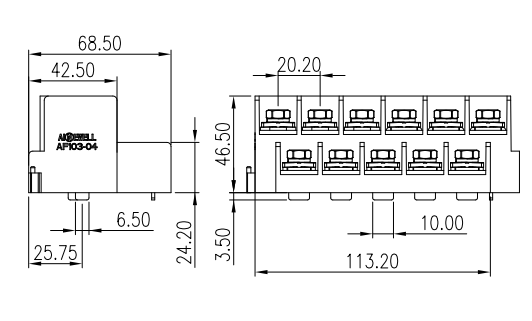

 Pitch:20.20mm

 Electrical:UL

 Rated Voltage:600V

 Rated Current:91A

 Wire Diameter Range(AWG/mm²)12-3/2.5-25

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2200V/1min

 Strip Length:17-18mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/SpringSteel,Nickel-plated
Fastening piece Cage/NutSteel,Zinc-plated
Electric Characteristics                ULIEC
Rated Voltage600V800V
Rated Current91A91A
Withstand VoltageAC2200V/1Min
Impulse Withstand Voltage8KV
Connection Characteristics
Wire Diameter Range(AWG/mm²)12~3/2.5~25
Strip Length17-18mm
TorqueM6,2N.m/M4,1.2N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
